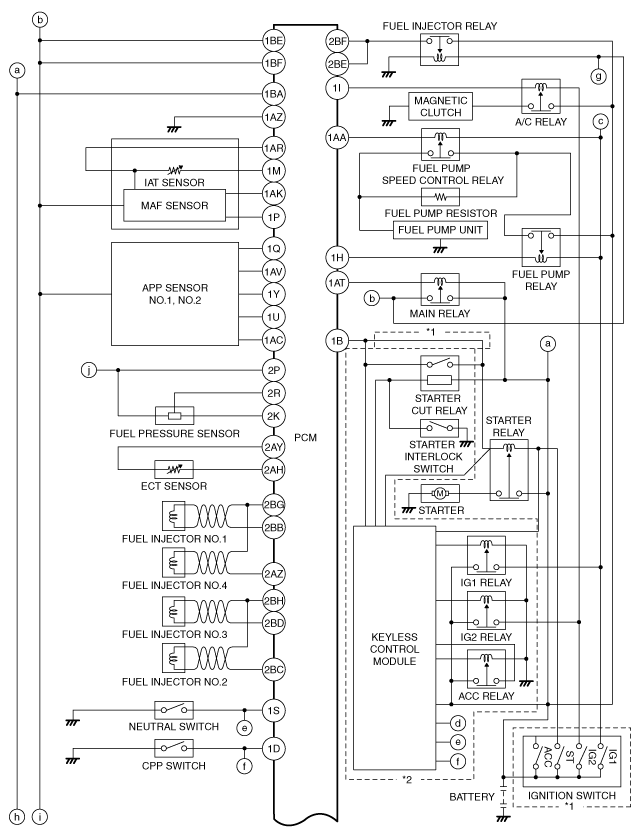

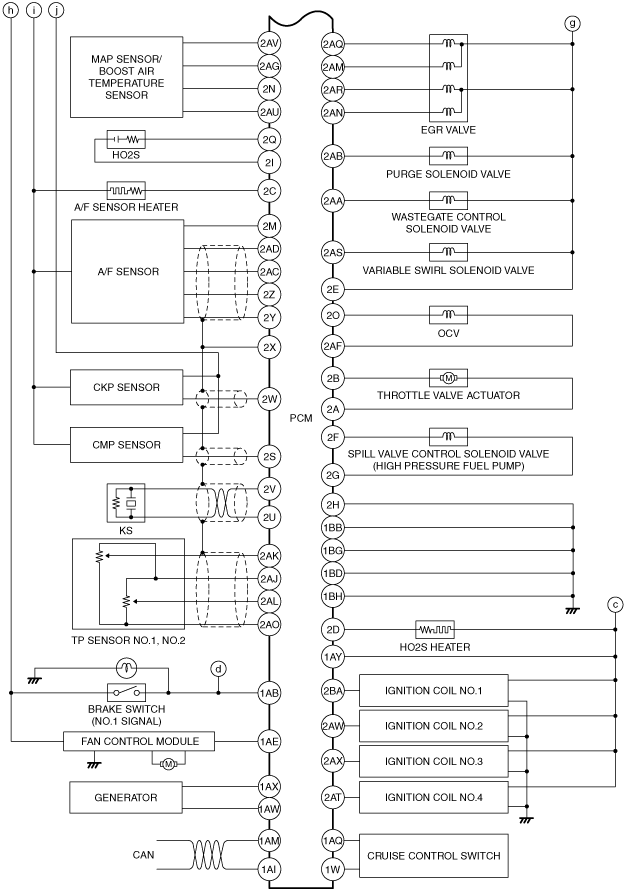

SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [MZR 2.3 DISI Turbo]

id0103e2800100

am3zzw00012398

am3zzw00012399

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
