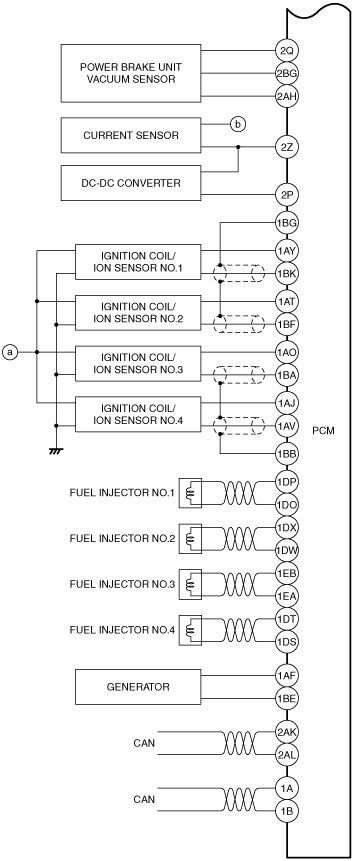

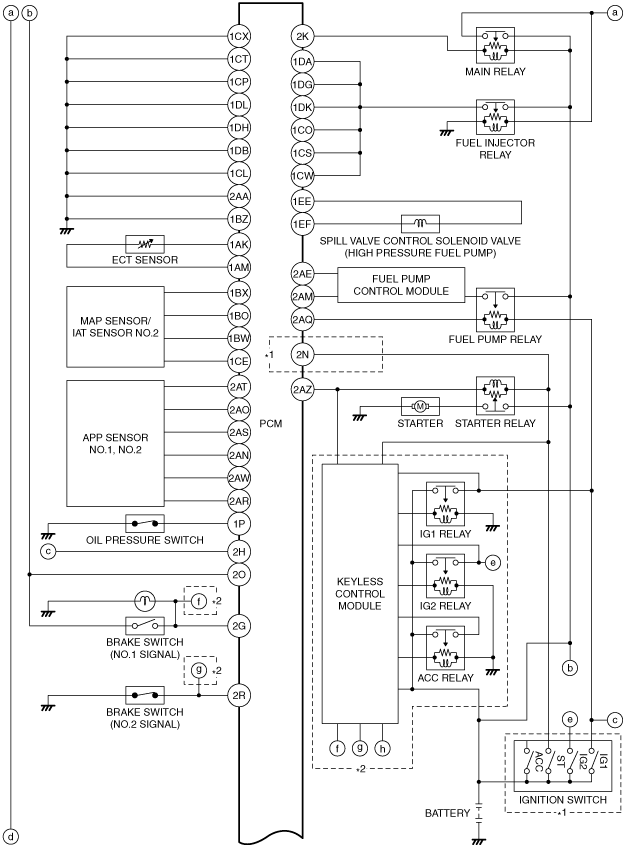

SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [SKYACTIV-G 2.0]
id0103e6800100
am3zzw00012700
am3zzw00012701
am3zzw00012702
*1 :Vehicles without advanced keyless entry and push button start system
*2 :Vehicles with advanced keyless entry and push button start system
