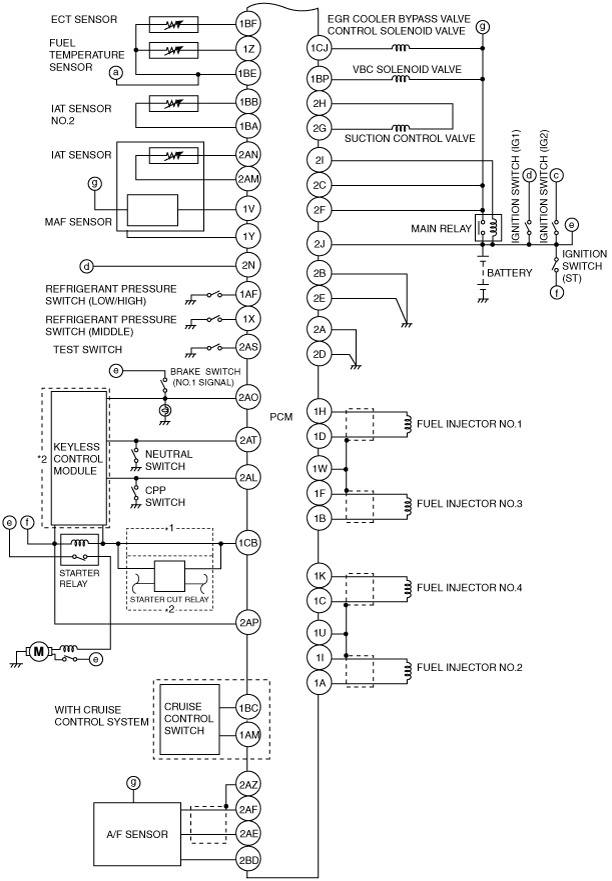

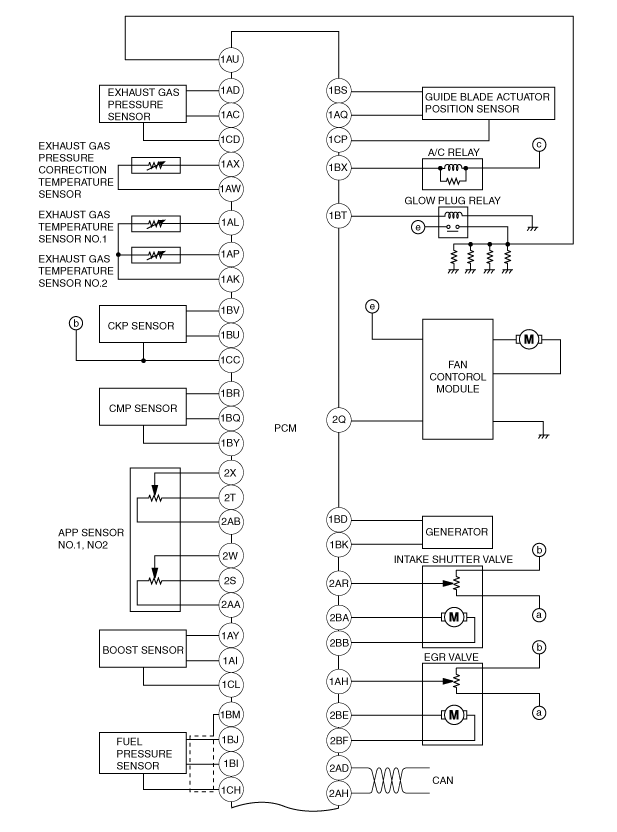

SYMPTOM TROUBLESHOOTING WIRING DIAGRAM [MZR-CD 2.2]

id0103f3800100

am3zzw00012404

am3zzw00012405

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
