NO.1 MELTING OF MAIN OR OTHER FUSES [MZR-CD 2.2]

id0103f3800700

1	MELTING OF MAIN OR OTHER FUSES

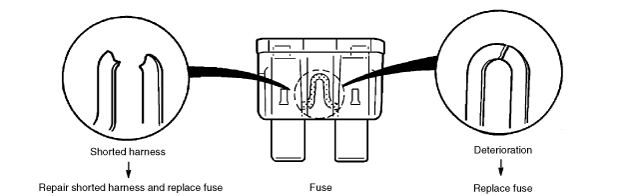

[TROUBLESHOOTING HINTS] •  Inspect condition of fuse.

Damaged fuse	Related wiring harness
IG KEY1	•  Ignition switch*1 •  IG1 relay*2 •  ACC relay*2 •  Power window relay*2
IG KEY2	•  Starter relay •  Ignition switch*1 •  IG2 relay*2 •  Windshield wiper relay*2
FAN1	•  Fan control module
FAN2	•  Fan control module
ENG	•  PCM
F.WARM	•  Fuel warmer relay
STARTER	•  Generator •  Starter
ST SIG	•  Starter relay
STOP	•  Starter cut relay*2
ENG+B	•  PCM •  Main relay
ENG MAIN	•  Main relay •  Glow plug relay
ENG BAR	•  PCM
ENG BAR2	•  PCM
ENG INJ	•  MAF/IAT sensor •  A/F sensor •  Variable boost control solenoid valve •  Egr cooler bypass valve
GLOW1	•  PCM
GLOW2	•  GLOW1 fuse •  Glow plug
GLOW3	•  GLOW1 fuse •  Glow plug
