OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo]


id0110d9801300

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

3.  Remove the charge air cooler. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

4.  Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

5.  Disconnect the ventilation hose from the cylinder head cover. (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

6.  Remove the cylinder head cover. (See TIMING CHAIN REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

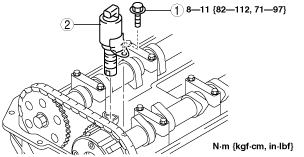

am3uuw00006061

1
OCV installation bolt
2
OCV
