ENGINE FRONT COVER [SKYACTIV-G 2.0]
id0110h2000900
Purpose, Function
• The engine front cover covers the engine front to prevent engine oil spillage, noise leakage, and foreign material penetration.
Construction
• The engine front cover is installed to the engine front.
• The lightweight engine front cover is made of aluminum alloy with excellent noise absorption.

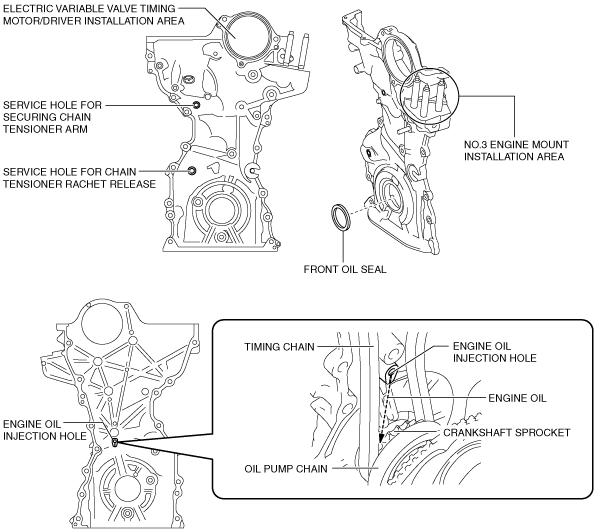

• The engine front cover has the following parts shown in the figure.
