VALVE, VALVE SPRING, VALVE SEAL, VALVE GUIDE [SKYACTIV-G 2.0]
id0110h2001300
Purpose, Function
Valve
-
• The intake valve is pressed down by the cam, the intake air passage is opened, and air is introduced into the cylinder.
• The exhaust valve is pressed down by the cam, the exhaust air passage is opened, and combustion gas is exhausted from the cylinder.
Valve spring
-
• The valve spring adheres to the valve seat by pulling up the valve by spring force, and air tightness in the combustion chamber is maintained.
Valve seal
-
• The valve seal prevents engine oil from entering combustion chamber through the valve guide, and engine oil consumption is suppressed.
Valve guide
-
• The valve guide maintains the valve stem to open and close the valve smoothly.
• The valve guide cools the valve by transmitting valve heat to the cylinder head.

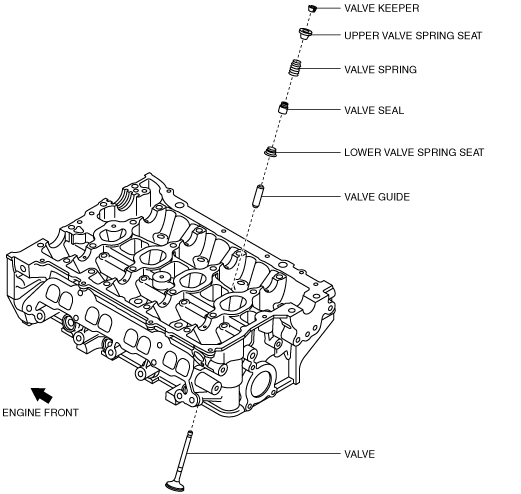

Construction
• The valve, valve spring, valve seal, and valve guide are assembled to the cylinder head as a single unit.
• The sliding resistance has been reduced by setting the valve spring load to the required minimum.
• The intake valve and exhaust valve are subjected to a salt-bath, soft-nitriding treatment to enhance wear resistance.
• Unequal pitch valve spring has been adopted. In addition, the upper diameter is smaller compared to the bottom diameter.
• The valve guide is made of sintered alloy with excellent wear resistance.
