•  The camshaft is rotated by receiving the rotation force of the crankshaft via the timing chain. The valve is opened and closed according to the cam shape at this time.

•  The camshaft is installed to the cylinder head.

•  The intake camshaft is a five-bearing type and the exhaust camshaft is a six-bearing type.

•  The camshaft thrust force is suppressed by the No.1 journal.

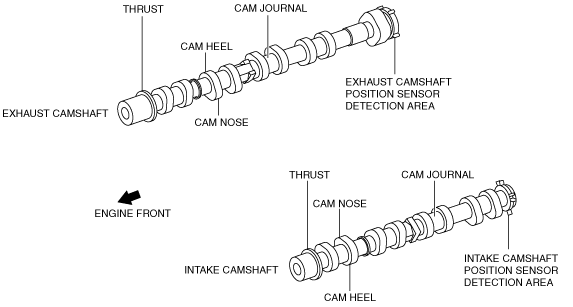

•  The camshaft has the following parts shown in the figure.

am3uun00002418
