PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0]

id0110h2803900

Removal

1.  Pull up the front part of the plug hole plate in the direction of the arrow and remove the rubber from the adapter on the engine side.

am3uuw00008896

2.  Pull out the plug hole plate from the pin on the engine side in the direction of the arrow and remove the plug hole plate.

am3uuw00008897

Installation

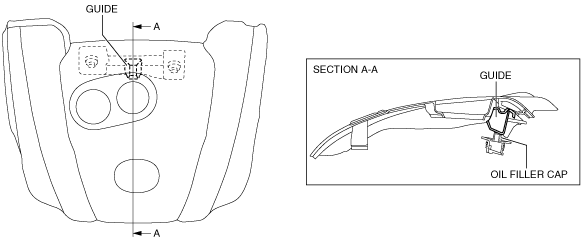

1.  Place the guide shown in the figure on the center part of the oil filler cap.

am3uuw00008898

2.  Press the guide in the direction of the arrow with the guide placed along the oil filler cap, and insert the rubber until it contacts the pin on the engine side.

am3uuw00008899

3.  Press the front of the plug hole plate in the direction of the arrow with both hands to insert the rubber to the adapter on the engine side.

am3uuw00008900
