WATER PUMP [SKYACTIV-G 2.0]

id0112h4003100

Purpose, Function

• The water pump operates by obtaining drive force from the engine via the drive belt to pump engine coolant.

Construction

• The water pump is installed to the engine front.

am3uun00001916

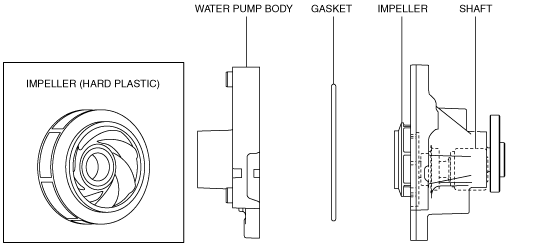

• The water pump consists of the following parts:

am3uun00001917

• With the adoption of a hard-plastic closed impeller, pump efficiency has been improved.

am3uun00001918

Operation

1. The water pump pulley rotates by obtaining drive force from the engine via the drive belt.

2. The impeller with the water pump pulley and shaft connected rotates to pump engine coolant.
