COOLING FAN COMPONENT [SKYACTIV-G 2.0]

id0112h4003200


Purpose, Function

•  The cooling fan rotates according to vehicle conditions and enhances the cooling efficiency of the radiator.

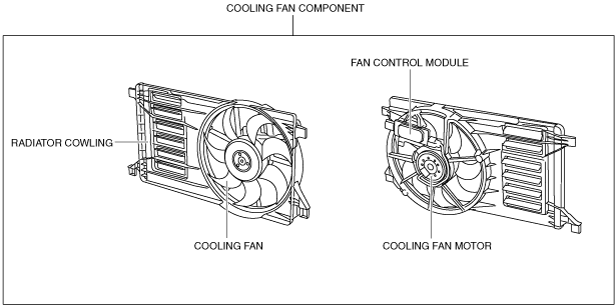

Structural View

am3uun00002197

Operation

•  For the operation, refer to CONTROL SYSTEM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 2.0].)

Fail-safe

•  —
