FAN CONTROL MODULE [SKYACTIV-G 2.0]


id0112h4101200


Purpose, Function

•  The fan control module operates by receiving the signal from the PCM to supply power to the cooling fan motor.

Construction

•  Fan control module is installed on the radiator cowling.
am3uun00000984

Operation

•  The fan control module drives the cooling fan motor based on the cooling fan control signals sent by the PCM. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 2.0].)
•  The fan control module allows continuously variable control of the cooling fan motor rotation rate, reducing fan operation noise and power consumption.
•  Based on the input signals from the control parts, the cooling fan may remain operational for several seconds or minutes after the ignition is switched off. (See ELECTRICAL FAN CONTROL [SKYACTIV-G 2.0].)

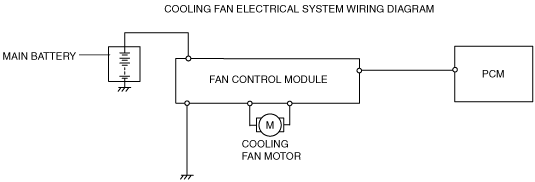

am3zzn00002754

Fail-safe

The fan control module has a power supply function to operate the cooling fan motor and the following protection functions.

1.  Over-current fail-safe

―  If current to the cooling fan motor exceeds the specified value, the fan control module stops the cooling fan motor for a specified period of time.

2.  Over heat fail-safe

―  If the internal area of the fan control module exceeds the specified temperature, the fan control module stops the cooling fan motor for a specified period of time.

3.  Input signal open circuit fail-safe

―  If there is an open circuit in the wiring harness between the PCM and the fan control module, the fan control module stops the cooling fan motor.

4.  Reversed polarity fail-safe

―  If there is a reversed power connection, the fan control module incorporates protection against reversed polarity. The motor reacts to reversed connections with unregulated, high-speed rotation in the opposite direction.
