AIR BYPASS VALVE INSPECTION [MZR 2.3 DISI Turbo]


id0113d7800500

1.  Remove the air bypass valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

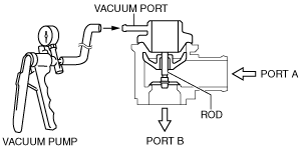

2.  Connect the vacuum pump to the vacuum ports of the air bypass valve.

am3uuw00005767

3.  Verify that the airflow is as indicated in the table.

Vacuum

(kPa {mmHg, inHg})

Valve operation condition

Airflow between port A—B

–66 {–495, –19}
or more
Open
Yes
–49 {–368, –14}
or less
Closed
No

Approx. value

am3uuw00005768
•  If there is any malfunction, replace the air bypass valve. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
