INTAKE-AIR SYSTEM [SKYACTIV-G 2.0]

id0113z5003300

Purpose, Outline

• A vacuum pump has been adopted which supplies stable vacuum to the power brake unit.

Structural View

am3zzn00003299

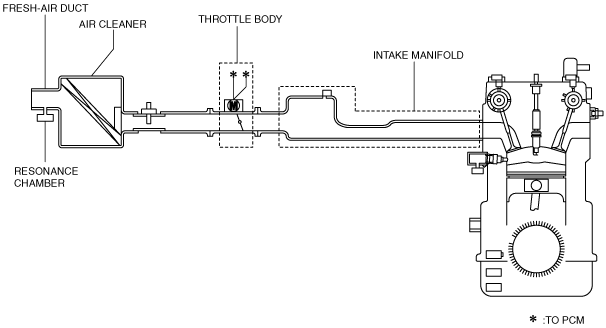

System Diagram

am3uun00002093

Vacuum Hose Routing Diagram

am3zzn00003300

Structure

• The intake air system consists of the following parts:

Part name	Reference
Fresh-air duct	(See FRESH-AIR DUCT [SKYACTIV-G 2.0].)
Resonance chamber	(See RESONANCE CHAMBER [SKYACTIV-G 2.0].)
Air cleaner	(See AIR CLEANER [SKYACTIV-G 2.0].)
Throttle body	(See THROTTLE BODY [SKYACTIV-G 2.0].)
Vacuum pump	(See VACUUM PUMP [SKYACTIV-G 2.0].)
Intake manifold	(See INTAKE MANIFOLD [SKYACTIV-G 2.0].)
Accelerator pedal	(See ACCELERATOR PEDAL [SKYACTIV-G 2.0].)
