FUEL FILTER REMOVAL/INSTALLATION [MZ-CD 1.6]

id011420800000

1.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZ-CD 1.6].)

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

3.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZ-CD 1.6].)

4.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [MZ-CD 1.6].)

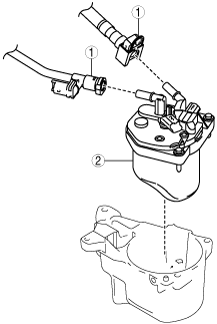

5.  Remove in the order indicated in the table.

am3zzw00012548

1	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [MZ-CD 1.6].)
2	Fuel filter

6.  Install in the reverse order of removal.

7.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [MZ-CD 1.6].)
