FUEL FILTER DISASSEMBLY/ASSEMBLY [MZR-CD 2.2]

id0114f2485100

Warning

•  Fuel is very flammable liquid. If fuel spills or leaks from the pressurized fuel system, it will cause serious injury or death and facility breakage. Fuel can also irritate skin and eyes. To prevent this, always complete the “Fuel Line Safety Procedure”, while referring to the “BEFORE SERVICE PRECAUTION”.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.

1.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [MZR-CD 2.2].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR-CD 2.2].)

3.  Remove the fuel filter. (See FUEL FILTER REMOVAL/INSTALLATION [MZR-CD 2.2].)

4.  Disassemble in the order indicated in the table.

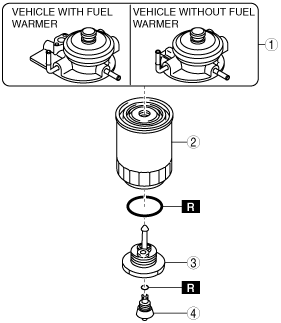

L.H.D.

am3zzw00012077

1	Fuel filter body
2	Fuel filter (See Fuel Filter Installation Note)
3	Sedimentor switch
4	Drain plug

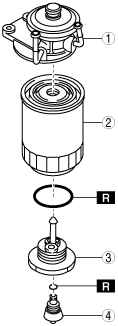

R.H.D.

am3zzw00005139

1	Fuel filter body
2	Fuel filter (See Fuel Filter Installation Note)
3	Sedimentor switch
4	Drain plug

5.  Assemble in the reverse order of removal.

Fuel Filter Installation Note

1.  Apply a small amount of fuel to the fuel filter O-ring.

2.  Tighten the fuel filter approx. 3/4 by hand after the O-ring contacts the priming pump.
