•  Supplies fuel in the fuel tank to the high pressure fuel pump.

•  Based on the control signal from the PCM, the fuel pump operates by the operation of the fuel pump relay and the fuel pump control module.

•  The fuel pump unit is installed to the fuel tank.

am3zzn00003303

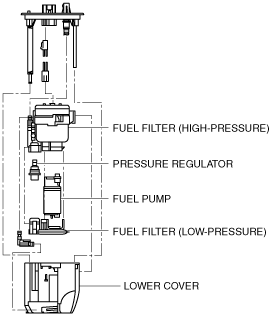

•  The fuel pump unit consists of a fuel pump, fuel filter (low-pressure) fuel filter (high-pressure), pressure regulator, and lower cover.

am3zzn00003304

•  Based on the control signal from the PCM, the fuel pump suctions fuel in the lower cover and pumps it to the high pressure fuel pump. After fuel is sufficiently filtered through the fuel filter (low-pressure) and fuel filter (high-pressure), fuel pressure is adjusted to approx. 430 kPa {4.38 kgf/cm², 62.4 psi} by the pressure regulator.

am3uun00002131

•  For fuel pump control details, refer to CONTROL SYSTEM. (See FUEL PUMP CONTROL [SKYACTIV-G 2.0].)

•  —
