• Supplies power to the PCM for the fuel injector and spill valve control solenoid valve operation.
Construction
• The fuel injector relay is installed to the relay and fuse block.
am3uun00002141
Operation

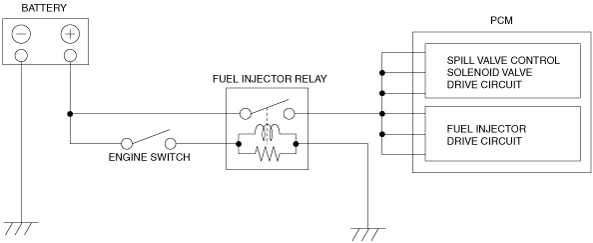

• When the ignition is switched ON, the battery voltage is supplied to the coil and the contact point is on, thus the battery voltage is supplied to the PCM.
