FUEL DISTRIBUTOR [SKYACTIV-G 2.0]


id0114z5160000


Purpose, Function

•  Distributes fuel pumped from the high pressure fuel pump to each fuel injector.

Construction

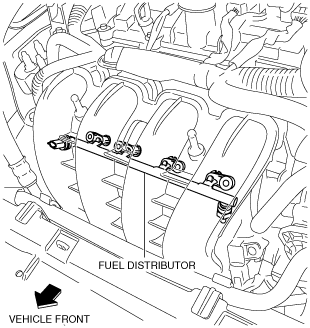

•  The fuel distributor is installed to the cylinder head.
am3uun00002143

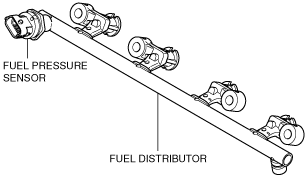

•  The fuel distributor is integrated with the fuel pressure sensor.
am3uun00002144
