EXHAUST SYSTEM [SKYACTIV-G 2.0]

id0115z5125800

Outline

• By positioning the exhaust manifold to the rear of the engine, the exhaust pipe has been shortened and the exhaust efficiency has been improved, achieving reduced exhaust noise and smooth exhaust.

• Integrated with the exhaust manifold, distance to the catalytic converter has been shortened. Because the high temperature exhaust gas passes the catalytic converter, warming up (activation) of the catalytic converter is enhanced.

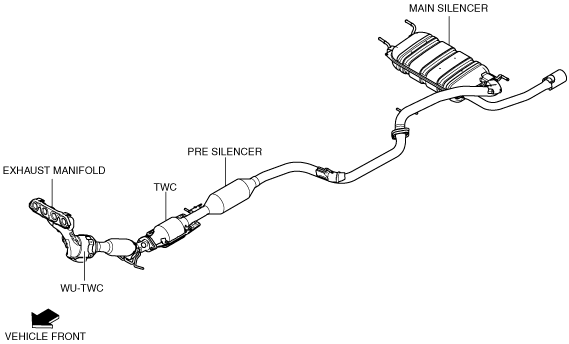

Structural View

am3uun00002098

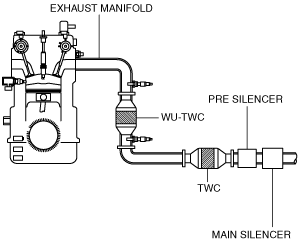

System Diagram

am3uun00002099

Structure

• The exhaust system consists of the following parts:

Part name

Reference

Main silencer

(See MAIN SILENCER [SKYACTIV-G 2.0].)

Presilencer

(See PRESILENCER [SKYACTIV-G 2.0].)

TWC

(See CATALYTIC CONVERTER [SKYACTIV-G 2.0].)

WU-TWC

Exhaust manifold

(See EXHAUST MANIFOLD [SKYACTIV-G 2.0].)

Part name	Reference
Main silencer	(See MAIN SILENCER [SKYACTIV-G 2.0].)
Presilencer	(See PRESILENCER [SKYACTIV-G 2.0].)
TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 2.0].)
WU-TWC	(See CATALYTIC CONVERTER [SKYACTIV-G 2.0].)
Exhaust manifold	(See EXHAUST MANIFOLD [SKYACTIV-G 2.0].)
