PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop]

id0116a9804300

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

3.  Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

4.  Remove in the order indicated in the table.

am3zzw00012119

1
Purge solenoid valve connector
2
Evaporative hose
(See Evaporative Hose Installation Note.)
3
Purge solenoid valve

5.  Install in the reverse order of removal.


Evaporative Hose Installation Note

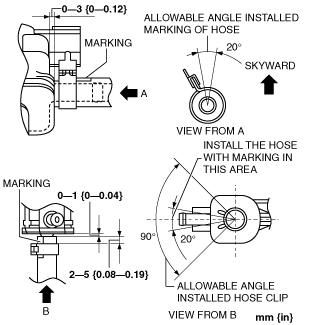

1.  Install the evaporative hose and clip as shown in the figure.

am3zzw00007166
