EGR VALVE REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6]

id0116ad801000

Vehicles With EGR System

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Remove the air cleaner cover. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

4.  Disconnect the EGR valve connector.

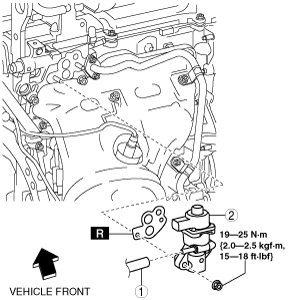

5.  Remove in the order indicated in the table.

am3zzw00012128

1	Water hose
2	EGR valve

6.  Install in the reverse order of removal.
