CHARCOAL CANISTER REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6]

id0116ad801500

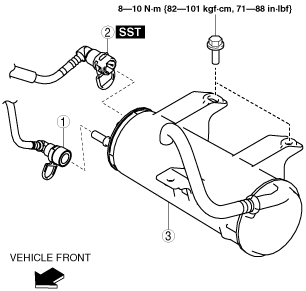

1.  Remove in the order indicated in the table.

am3zzw00012129

1	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
2	Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)
3	Charcoal canister

2.  Install in the reverse order of removal.
