PURGE SOLENOID VALVE REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo]
id0116f3804300
1. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)
2. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI Turbo].)

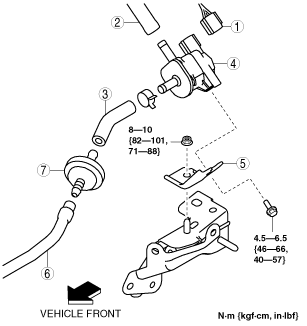

3. Remove in the order indicated in the table.
am3zzw00012147
|
|
1
|
Purge solenoid valve connector
|
|
2
|
Evaporative hose No.1
|
|
3
|
Evaporative hose No.2
|
|
4
|
Purge solenoid valve
|
|
5
|
Purge solenoid valve bracket
|
|
6
|
Evaporative hose No.3
|
|
7
|
Check valve (one-way)
|
4. Install in the reverse order of removal.
Evaporative Hose No.2 Installation Note
1. Install the evaporative hose No.2 and clip as shown in the figure.
am3uuw00008514
|

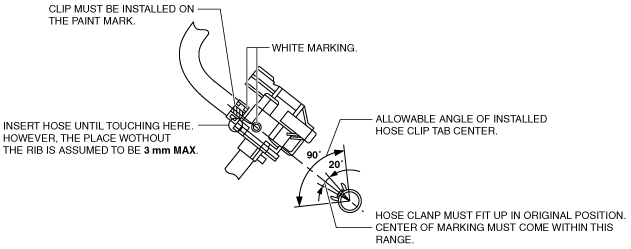

Evaporative Hose No.1 Installation Note
1. Install the evaporative hose No.1 and clip as shown in the figure.
am3uuw00008515
|
