EVAPORATIVE EMISSION (EVAP) CONTROL SYSTEM [SKYACTIV-G 2.0]

id0116z8108800

Purpose, Outline

• Prevents release of evaporative gas into the atmosphere.

• The intake manifold vacuum introduces evaporative gas to the intake manifold via the charcoal canister and the purge solenoid valve.

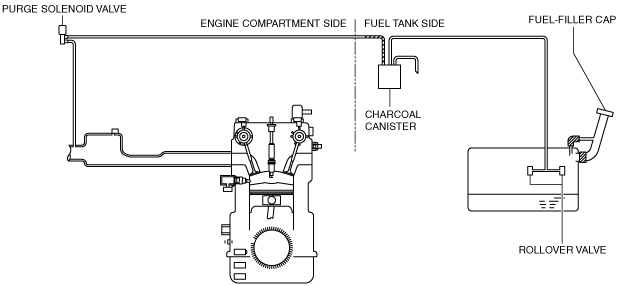

System Diagram

am3zzn00003308

Structure

• The evaporative emission control system consists of the following parts:

Part name	Reference
Purge solenoid valve	(See PURGE SOLENOID VALVE [SKYACTIV-G 2.0].)
Catch tank	(See CATCH TANK [SKYACTIV-G 2.0].)
Charcoal canister	(See CHARCOAL CANISTER [SKYACTIV-G 2.0].)
Check valve (two-way)	(See CHECK VALVE (TWO-WAY) [SKYACTIV-G 2.0].)
Rollover valve	(See ROLLOVER VALVE [SKYACTIV-G 2.0].)
Fuel-filler cap	(See FUEL-FILLER CAP [SKYACTIV-G 2.0].)
