CHARCOAL CANISTER INSPECTION [SKYACTIV-G 2.0]

id0116z8800500

Leakage Inspection

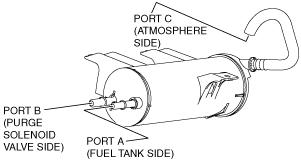

1.  Perform the following procedures:

•  Assemble the hose used for inspection to port A.

•  Cover ports B and C with the caps.

am3zzw00012166

Caution

•  Do not apply a pressure 20 kPa {150 mmHg, 5.91 inHg} or more to the charcoal canister for 1 min. or more. Doing so will damage the charcoal canister.

2.  Apply pressure (19.6 kPa {147 mmHg, 5.79 inHg}) through the hose, and verify that air does not leak from the charcoal canister.

am3zzw00012167

•  If there is airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

•  If there is no airflow, perform the following “Airflow Inspection”. (See Airflow Inspection.)

Airflow Inspection

1.  Perform the following procedure to verify the charcoal canister airflow.

Between port A and port B

1.  Plug the port C.

am3zzw00012168

2.  Apply a pressure of 19.6 kPa {147 mmHg, 5.79 inHg} to port A.

3.  Verify that there is airflow from port B.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

Between port A and port C

1.  Plug the port B.

am3zzw00012169

2.  Apply a pressure of 19.6 kPa {147 mmHg, 5.79 inHg} to port A.

3.  Verify that there is airflow from port C.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)

Between port B and port C

1.  Plug the port A.

am3zzw00012170

2.  Apply a pressure of 19.6 kPa {147 mmHg, 5.79 inHg} to port C.

3.  Verify that there is airflow from port B.

•  If there is no airflow, replace the charcoal canister. (See CHARCOAL CANISTER REMOVAL/INSTALLATION [SKYACTIV-G 2.0].)
