GENERATOR DISASSEMBLY/ASSEMBLY [MZR-CD 2.2]

id0117f3800400

Caution
•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

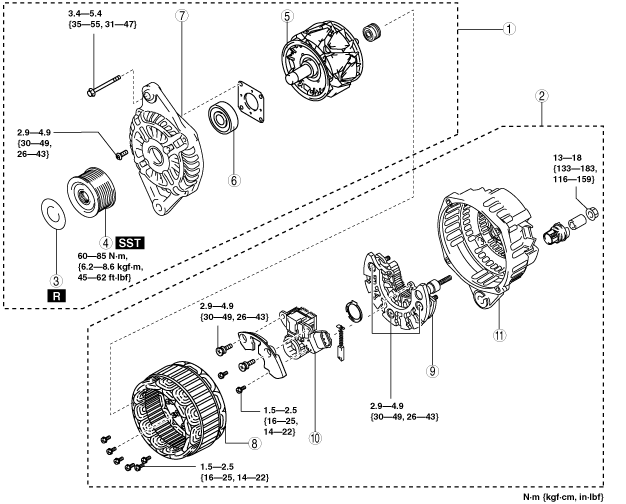

am3zzw00006368

1
Rotor component
2
Stator coil component
3
Generator bearing cover
(See Generator Bearing Cover Disassembly Note.)
4
Pulley
(See Pulley Disassembly/Assembly Note.)
5
Rotor
6
Front bearing
7
Front cover
8
Stator coil
9
Rectifier
10
Regulator component
11
Rear cover


Generator Bearing Cover Disassembly Note

1.  Bore a hole in the generator bearing cover with a flathead screw driver as shown in the figure and remove generator bearing cover.

am6zzw00004413


Pulley Disassembly/Assembly Note

1.  Disassemble/assemble the pulley using the SST.

am6zzw00003740

Tightening torque
60—85 N·m {6.2—8.6 kgf·m, 45—62 ft·lbf}
