BATTERY [SKYACTIV-G 2.0]

id0117h5185200

Purpose, Function

• The battery stores electricity generated by the generator. In addition, it supplies power to electronic devices if necessary.

Construction

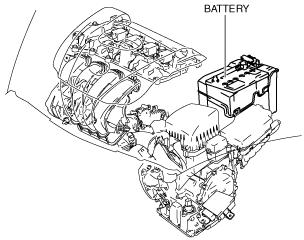

• The battery is installed in the engine compartment. (vehicle left)

am3zzn00003412

Fail-safe

DTC

Fail-safe

P057F:00

• Inhibits engine-stop by operating the i-stop function.

• Inhibits a part of the generator output control.
