GENERATOR DISASSEMBLY/ASSEMBLY [MZR 1.5, MZR 1.6]

id0117s3800400

Caution

•  Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

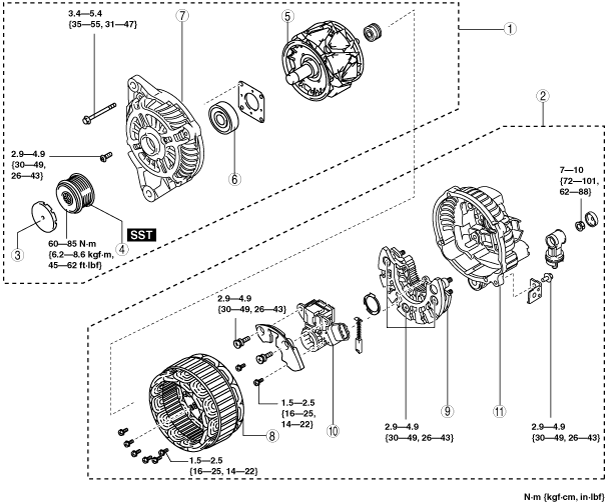

MZR 1.5, MZR 1.6 (European (L.H.D. U.K.) specs. (MTX), Russia)

am3zzw00006360

1	Rotor component
2	Stator coil component
3	Generator bearing cover
4	Pulley (See Pulley Disassembly/Assembly Note.)
5	Rotor
6	Front bearing
7	Front cover
8	Stator coil
9	Rectifier
10	Regulator component
11	Rear cover

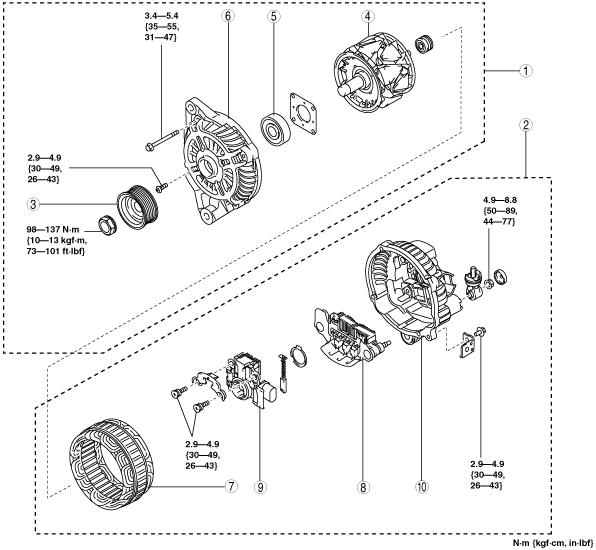

MZR 1.6 (European (L.H.D. U.K.) specs. (ATX) (except Russia), General (L.H.D. R.H.D.) specs.)

am3zzw00007882

1	Rotor component
2	Stator coil component
3	Pulley
4	Rotor
5	Front bearing
6	Front cover
7	Stator coil
8	Rectifier
9	Regulator component
10	Rear cover

Pulley Disassembly/Assembly Note

1.  Disassemble/assemble the pulley using the SST.

am3zzw00006361
