STARTER DISASSEMBLY/ASSEMBLY [MZR 1.5, MZR 1.6]

id0119s6800400

1.  Disassemble in the order indicated in the table.

2.  Assemble in the reverse order of disassembly.

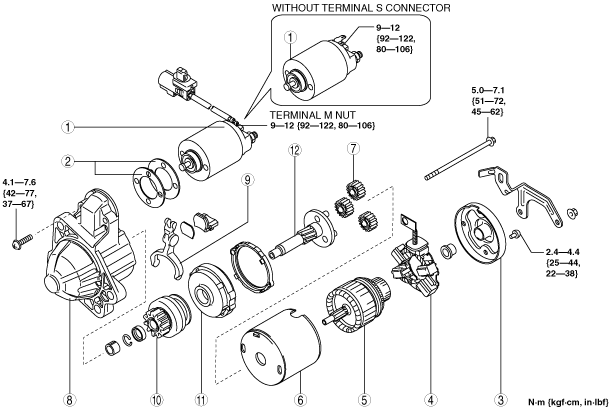

am3zzw00015602

1	Magnetic switch
2	Adjustment washer
3	Rear housing
4	Brush and brush holder
5	Armature
6	Yoke
7	Planetary gear
8	Front cover
9	Lever
10	Drive pinion
11	Internal gear
12	Gear shaft
