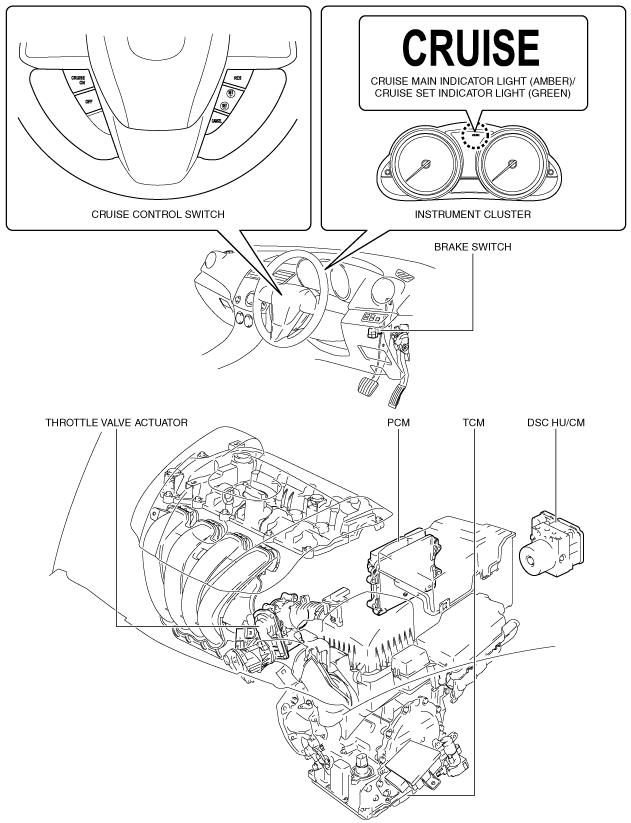

CRUISE CONTROL SYSTEM [SKYACTIV-G 2.0]

Component	Function
DSC HU/CM (CAN communication: Vehicle speed signal)	The vehicle speed signal is sent to the PCM from the DSC HU/CM.
Cruise control switch	ON	The cruise control system main switch. The cruise control system goes into stand-by with the operation of the switch.
OFF	The cruise control system main switch. The cruise control system is turned off with the operation of the switch.
SET (+)	• If the switch is pressed upward when the vehicle speed exceeds 25 km/h {16 mph} with the system in stand-by, the vehicle speed at the point when the switch is pressed upward is stored in the PCM and the system initiates the cruise control. • The PCM controls acceleration by the pressing of the switch upward (tap-up operation) or when the switch is continuously pressed upward during cruise control.
SET (−)	• If the switch is pressed downward when the vehicle speed exceeds 25 km/h {16 mph} with the system in stand-by, the vehicle speed at the point when the switch is pressed downward is stored in the PCM and the system initiates the cruise control. • The PCM controls deceleration by the pressing of the switch downward (tap-down operation) or when the switch is continuously pressed downward during cruise control.
RESUME	If the switch is pressed when the vehicle speed exceeds 25 km/h {16 mph} with the system in stand-by and the previous pre-set vehicle speed is stored in the PCM, the system initiates the cruise control so that the vehicle speed is the pre-set vehicle speed stored in the PCM.
CANCEL	If the switch is pressed during cruise control, the cruise control system goes into stand-by (pre-set vehicle speed is stored).
Brake switch	Depressing the brake pedal during cruise control switches the cruise control system to stand-by mode (pre-set vehicle speed is stored).
TCM (CAN communication: gear signal)	If the following operation is performed during cruise control, the cruise control system goes into stand-by mode (pre-set vehicle speed is stored). • The selector lever is shifted from D position to N position.
PCM	The cruise control system is executed or stopped according to the cruise control switch signals. The throttle valve actuator is operated so that the vehicle speed is the pre-set vehicle speed during cruise control system.
Throttle valve actuator	The duty signal sent from the PCM adjusts the throttle valve opening angle.
Cruise main indicator light (Amber)	(See CRUISE MAIN INDICATOR LIGHT (AMBER) [SKYACTIV-G 2.0].)
Cruise set indicator light (Green)	(See CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0].)

Component

Function

DSC HU/CM

(CAN communication: Vehicle speed signal)

The vehicle speed signal is sent to the PCM from the DSC HU/CM.

Cruise control switch

The cruise control system main switch. The cruise control system goes into stand-by with the operation of the switch.

OFF

The cruise control system main switch. The cruise control system is turned off with the operation of the switch.

SET (+)

• If the switch is pressed upward when the vehicle speed exceeds 25 km/h {16 mph} with the system in stand-by, the vehicle speed at the point when the switch is pressed upward is stored in the PCM and the system initiates the cruise control.

• The PCM controls acceleration by the pressing of the switch upward (tap-up operation) or when the switch is continuously pressed upward during cruise control.

SET (−)

• If the switch is pressed downward when the vehicle speed exceeds 25 km/h {16 mph} with the system in stand-by, the vehicle speed at the point when the switch is pressed downward is stored in the PCM and the system initiates the cruise control.

• The PCM controls deceleration by the pressing of the switch downward (tap-down operation) or when the switch is continuously pressed downward during cruise control.

RESUME

If the switch is pressed when the vehicle speed exceeds 25 km/h {16 mph} with the system in stand-by and the previous pre-set vehicle speed is stored in the PCM, the system initiates the cruise control so that the vehicle speed is the pre-set vehicle speed stored in the PCM.

CANCEL

If the switch is pressed during cruise control, the cruise control system goes into stand-by (pre-set vehicle speed is stored).

Brake switch

Depressing the brake pedal during cruise control switches the cruise control system to stand-by mode (pre-set vehicle speed is stored).

TCM

(CAN communication: gear signal)

If the following operation is performed during cruise control, the cruise control system goes into stand-by mode (pre-set vehicle speed is stored).

• The selector lever is shifted from D position to N position.

PCM

The cruise control system is executed or stopped according to the cruise control switch signals. The throttle valve actuator is operated so that the vehicle speed is the pre-set vehicle speed during cruise control system.

Throttle valve actuator

The duty signal sent from the PCM adjusts the throttle valve opening angle.

Cruise main indicator light (Amber)

(See CRUISE MAIN INDICATOR LIGHT (AMBER) [SKYACTIV-G 2.0].)

Cruise set indicator light (Green)

(See CRUISE SET INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.0].)
