MASS AIR FLOW (MAF)/INTAKE AIR TEMPERATURE (IAT) SENSOR REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6]

id014068805500

Note

•  Because the IAT sensor is integrated in the MAF sensor, replacing the IAT sensor includes replacement of the MAF/IAT sensor.

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 1.5, MZR 1.6].)

3.  Disconnect the MAF/IAT sensor connector.

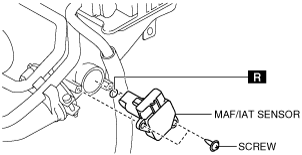

4.  Remove the MAF/IAT sensor.

am3zzw00011571

5.  Install in the reverse order of removal.
