CONTROL SYSTEM WIRING DIAGRAM [MZR 2.0, MZR 2.5]

id0140e4800400

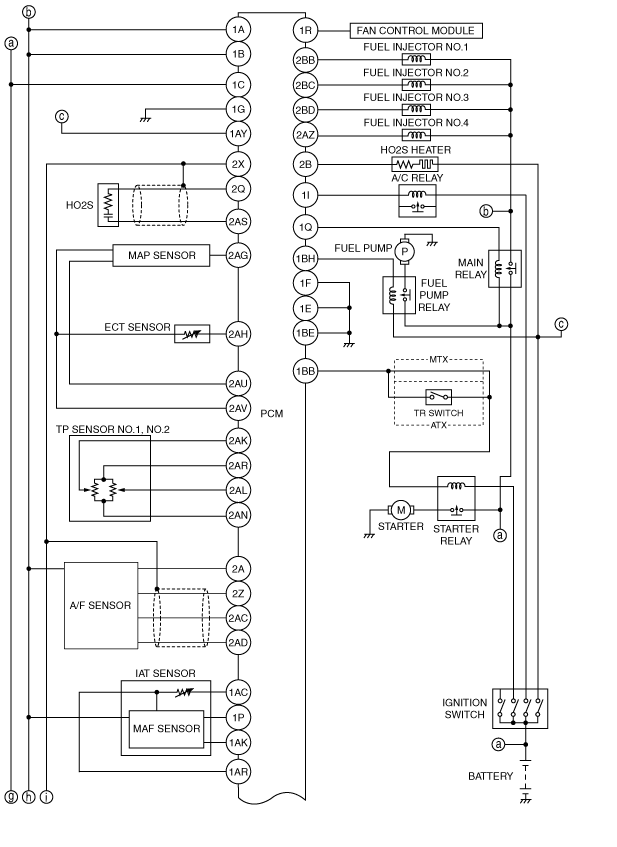

Vehicles Without Immobilizer System

am3zzw00012410

am3zzw00012411

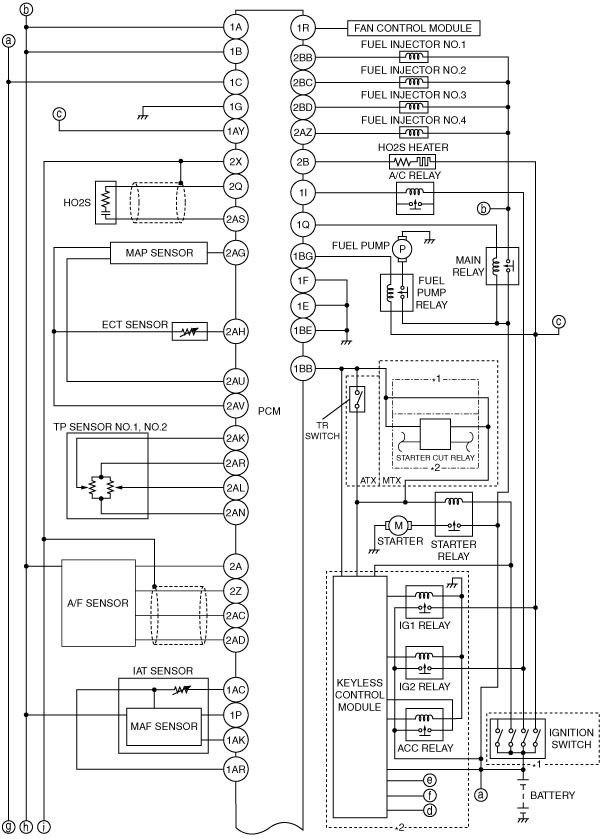

Vehicles With Immobilizer System

am3zzw00012412

am3zzw00012411

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
