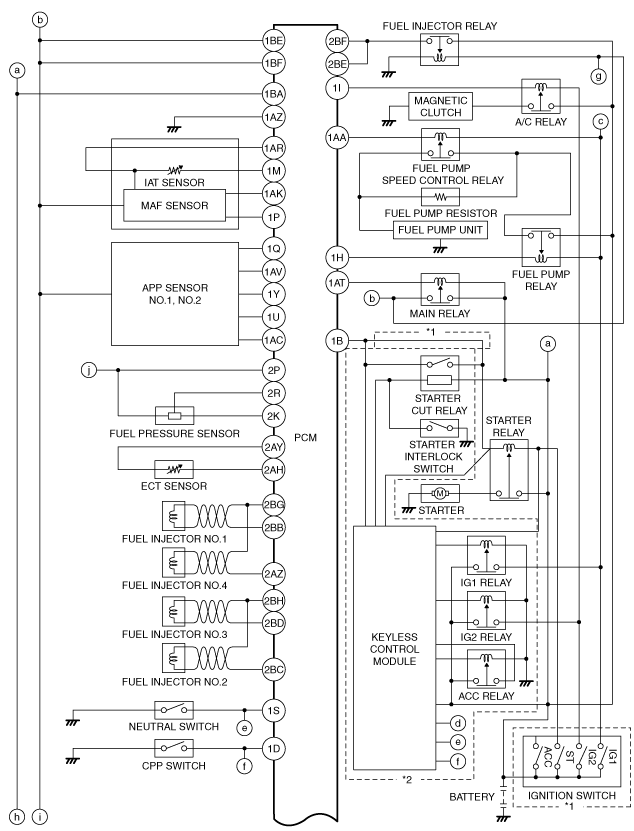

CONTROL SYSTEM WIRING DIAGRAM [MZR 2.3 DISI Turbo]

id0140e5800400

am3zzw00012415

am3zzw00012416

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
