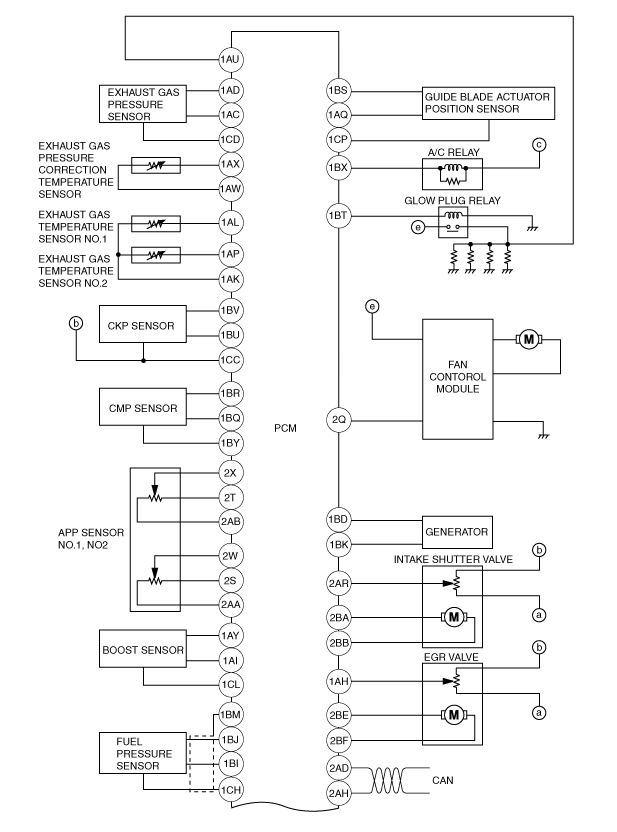

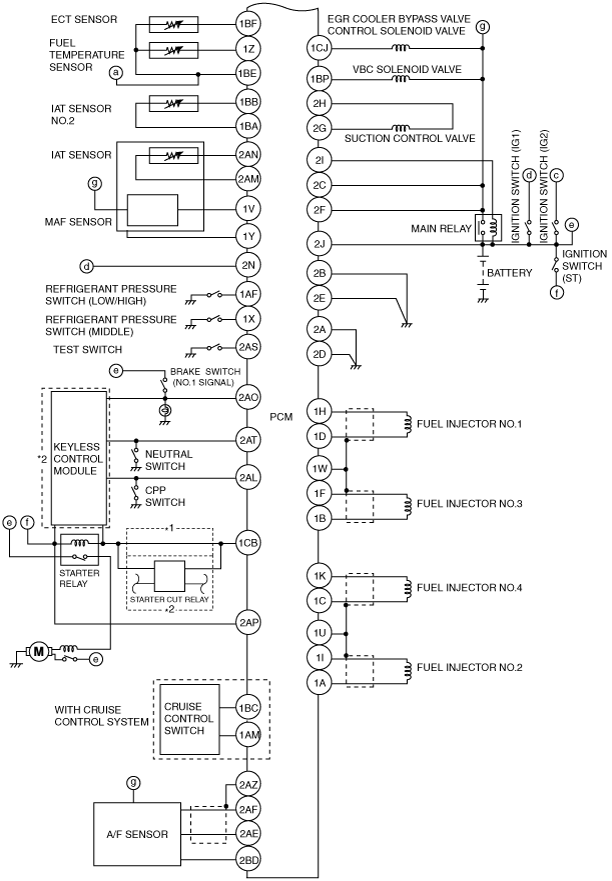

CONTROL SYSTEM WIRING DIAGRAM [MZR-CD 2.2]

id0140f2800400

am3zzw00012417

am3zzw00012418

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
