KNOCK SENSOR (KS) [SKYACTIV-G 2.0]

id0140f4004900


Purpose/Function

•  Detects abnormal combustion in the cylinder as basic information for mainly determining the ignition timing.
•  Detects abnormal combustion in the combustion changer and inputs it to the PCM as a knocking signal.

Construction

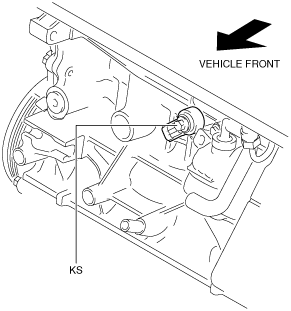

•  Installed on the cylinder block.
am3uun00001718
•  A piezoelectric element has been adopted as the detecting element for detecting abnormal combustion.

Operation

•  Inputs the signal, which fluctuates according to abnormal combustion, to the PCM.
am3uun00001719

KS characteristic

am3uun00001720

Fail-safe

DTC No.

Fail-safe function
P0327:00
•  Sets the knocking spark retard correction value of the ignition control to the fixed value.
P0328:00
•  Sets the knocking spark retard correction value of the ignition control to the fixed value.
