CRANKSHAFT POSITION (CKP) SENSOR [SKYACTIV-G 2.0]
id0140f4006300
Purpose/Function
• Detects the crankshaft speed as basic information for mainly determining the fuel injection timing and ignition timing.
• Detects the crankshaft speed and inputs it to the PCM as a CKP signal.
Construction
• Installed on the side of the cylinder block (right side).
• An MR (Magnetic Resistance) element has been adopted as the detecting element for detecting the crankshaft speed.
Operation
• Inputs the signal, which fluctuates according to the crankshaft speed, to the PCM.

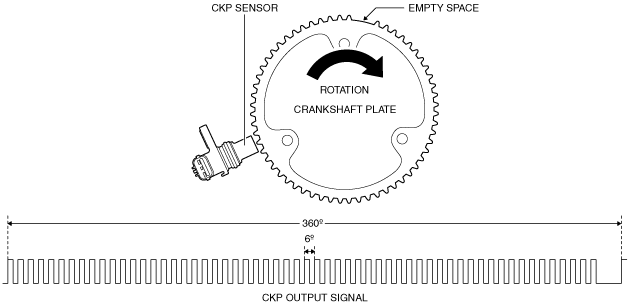

CKP sensor characteristic
Fail-safe
|
DTC No.
|
Fail-safe function
|
|
P0335:00
|
• Stops the fuel injection.
• Stops the ignition.
|
