CAMSHAFT POSITION (CMP) SENSOR [SKYACTIV-G 2.0]

id0140f4006700


Purpose/Function

•  Detects the camshaft speed as basic information for mainly determining the fuel injection timing and ignition timing.
•  Detects the camshaft speed and inputs it to the PCM as a CMP signal.

Construction

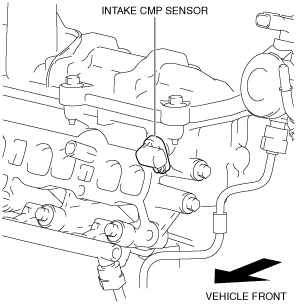

Intake CMP sensor

•  Installed on the cylinder head.
am3uun00001661
•  A GMR element has been adopted as the detecting element for detecting the camshaft speed.


Exhaust CMP sensor

•  Installed on the rear housing.
am3uun00001725
•  A GMR element has been adopted as the detecting element for detecting the camshaft speed.


Operation

•  Inputs the signal, which fluctuates according to the camshaft speed, to the PCM.
am3uun00001663

CMP sensor characteristic

am3uun00001664

Fail-safe


Intake CMP sensor

DTC No.

Fail-safe function
P0340:00
•  Set the electric variable valve timing control to the maximum cam retard mode.


Exhaust CMP sensor

DTC No.

Fail-safe function
P0365:00
•  Stops the fuel injection.
•  Stops the ignition.
