ENGINE CONTROL SYSTEM [SKYACTIV-G 2.0]

id0140f4139900

Outline

• L-jetronic^*1 and D-jetronic^*2 type detectors have been combined for intake air amount detection, improving the accuracy of the intake air amount measurement.

― MAF sensor adopted

― MAP sensor adopted

― IAT sensor No.1 and No.2 adopted

• Valve timing control has been adopted on both sides of the intake and exhaust, improving fuel economy and emission performance.

Intake side: Electric variable valve timing control

― Intake CMP sensor adopted

― Electric variable valve timing motor/driver adopted

― Electric variable valve timing relay adopted

Exhaust side: Hydraulic variable valve timing control

― Exhaust CMP sensor adopted

• Engine oil control has been adopted reducing engine load.

― Engine oil solenoid valve adopted

• DC-DC converter control has been adopted for improved power supply stability.

― DC-DC converter adopted

• With the adoption of fuel pump control, fuel pump power consumption has been reduced, improving fuel economy.

― Fuel pump control module adopted

• Generator output control adopted, fuel economy/idling stability improved.

― Current sensor adopted

• With the adoption of the ion sensor, which detects pre-ignition, engine reliability has been improved.

• LIN communication has been adopted to the current sensor and DC-DC converter for simplified wiring harnesses.

*1 :Measures the intake air amount directly using the MAF sensor.

*2 :Measures the intake air pressure introduced into the cylinder using the MAP sensor and calculates the intake air amount indirectly.

Structural View

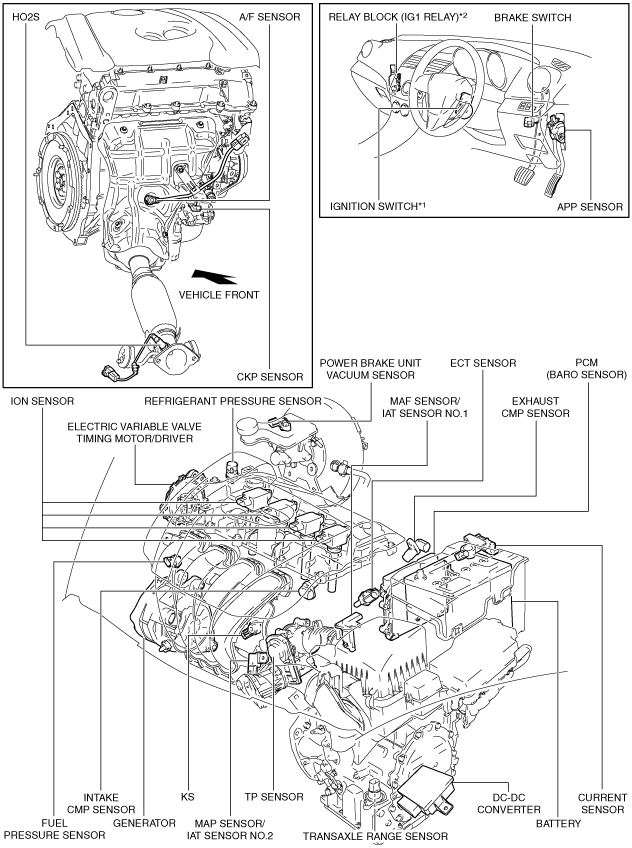

Input device

am3zzn00003389

Output device

am3zzn00003390

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system

*3 :Fuel pump relay, starter relay, electric variable valve timing relay, fuel injector relay, main relay, A/C relay

System Diagram

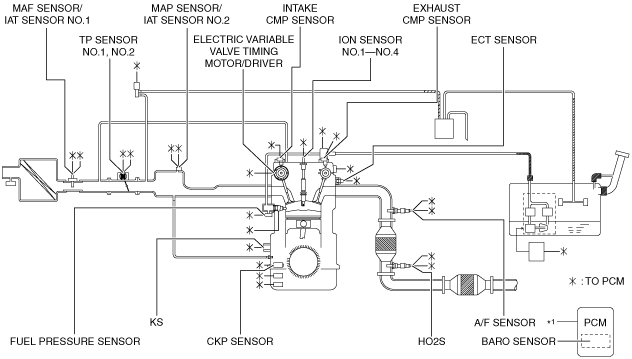

Input device

am3zzn00003391

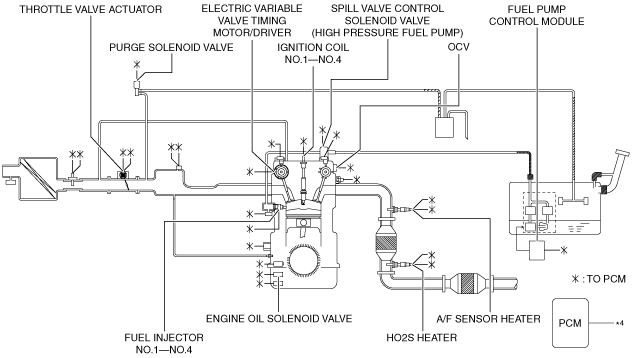

Output device

am3zzn00003392

*1 :APP sensor No.1, No.2, ignition switch (IG1)^*2, (STA)^*2, generator (stator coil), brake switch (No.1 signal), (No.2 signal), transaxle range sensor, battery, power brake unit vacuum sensor, refrigerant pressure sensor, IG1 relay^*3, LIN (current sensor, DC-DC converter), CAN

*2 :Vehicles without advanced keyless entry and push button start system

*3 :Vehicles with advanced keyless entry and push button start system

*4 :Generator (field coil), fuel pump relay, starter relay, electric variable valve timing relay, fan control module, fuel injector relay, main relay, A/C relay, DC-DC converter

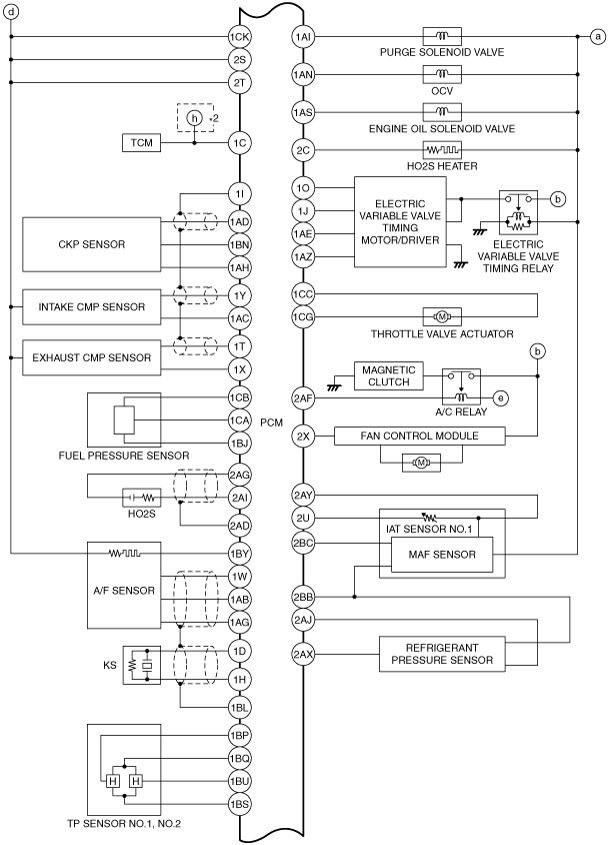

System Wiring Diagram

am3zzn00003433

am3zzn00003434

am3zzn00003435

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system

Block Diagram

am3zzn00003393

*1 :TCM, DSC HU/CM, BCM, instrument cluster, keyless control module, EHPAS control module

*2 :Vehicles without advanced keyless entry and push button start system

*3 :Vehicles with advanced keyless entry and push button start system

Relation Chart

• Each control system and their related input and output parts are as follows.

×: Applicable

Item

Input device

APP sensor No.1, No.2

×

×

×

×

×

×

×

×

TP sensor No.1, No.2

×

×

×

×

×

MAF sensor

×

×

×

×

×

×

×

×

×

×

IAT sensor No.1

×

×

×

×

×

×

×

×

IAT sensor No.2

×

×

×

×

MAP sensor

×

×

×

×

×

×

CKP sensor

×

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Intake CMP sensor

×

×

×

×

Exhaust CMP sensor

×

×

×

×

×

ECT sensor

×

×

×

×

×

×

×

×

×

×

×

×

×

×

Fuel pressure sensor

×

×

×

×

BARO sensor

×

×

×

×

×

Power brake unit vacuum sensor

×

Ion sensor No.1—No.4

×

×

KS

×

A/F sensor

×

×

HO2S

×

Refrigerant pressure sensor

×

×

Ignition switch (IG1)^*2, (STA)^*2, IG1 relay^*3

×

×

×

×

×

×

×

×

Brake switch (No.1 signal)

×

×

Brake switch (No.2 signal)

×

Transaxle range sensor

×

×

×

Electric variable valve timing motor/driver

×

Battery

×

×

×

×

×

×

×

Generator (Stator coil)

×

×

LIN (Current sensor, DC-DC converter)

×

×

×

CAN^*1

×

×

×

×

×

×

×

Output device

Main relay

×

Throttle valve actuator

×

×

Electric variable valve timing motor/driver

×

×

Electric variable valve timing relay

×

×

OCV

×

Fuel injector No.1—No.4

×

×

Fuel injector relay

×

×

Fuel pump control module

×

Fuel pump relay

×

Spill valve control solenoid valve (High pressure fuel pump)

×

Ignition coil No.1—No.4

×

×

Purge solenoid valve

×

A/F sensor heater

×

HO2S heater

×

A/C relay

×

Fan control module

×

Starter relay

×

×

Generator (Field coil)

×

×

DC-DC converter

×

×

Engine oil solenoid valve

×

*1 :TCM, DSC HU/CM, BCM, instrument cluster, keyless control module, EHPAS control module

*2 :Vehicles without advanced keyless entry and push button start system

*3 :Vehicles with advanced keyless entry and push button start system

Item
Input device
APP sensor No.1, No.2		×	×		×			×	×		×	×			×
TP sensor No.1, No.2		×			×			×			×				×
MAF sensor		×	×	×	×		×	×	×	×		×					×
IAT sensor No.1		×		×	×			×	×			×		×	×
IAT sensor No.2		×		×	×			×
MAP sensor		×		×	×			×	×								×
CKP sensor		×	×	×	×	×	×	×	×	×	×	×	×	×	×		×
Intake CMP sensor		×		×	×			×
Exhaust CMP sensor		×	×		×		×	×
ECT sensor		×	×	×	×		×	×	×	×	×	×	×	×	×		×
Fuel pressure sensor		×			×	×	×
BARO sensor		×		×	×				×			×
Power brake unit vacuum sensor															×
Ion sensor No.1—No.4				×	×
KS								×
A/F sensor					×				×
HO2S					×
Refrigerant pressure sensor											×	×
Ignition switch (IG1)^2, (STA)^2, IG1 relay^*3	×		×		×	×		×		×		×				×
Brake switch (No.1 signal)		×													×
Brake switch (No.2 signal)		×
Transaxle range sensor		×			×										×
Electric variable valve timing motor/driver				×
Battery			×			×	×	×	×					×	×
Generator (Stator coil)		×						×
LIN (Current sensor, DC-DC converter)														×	×	×
CAN^*1		×			×			×			×	×	×		×
Output device
Main relay	×
Throttle valve actuator		×													×
Electric variable valve timing motor/driver				×											×
Electric variable valve timing relay				×											×
OCV			×
Fuel injector No.1—No.4					×										×
Fuel injector relay					×										×
Fuel pump control module						×
Fuel pump relay						×
Spill valve control solenoid valve (High pressure fuel pump)							×
Ignition coil No.1—No.4								×							×
Purge solenoid valve									×
A/F sensor heater										×
HO2S heater										×
A/C relay											×
Fan control module												×
Starter relay													×		×
Generator (Field coil)														×	×
DC-DC converter															×	×
Engine oil solenoid valve																	×
