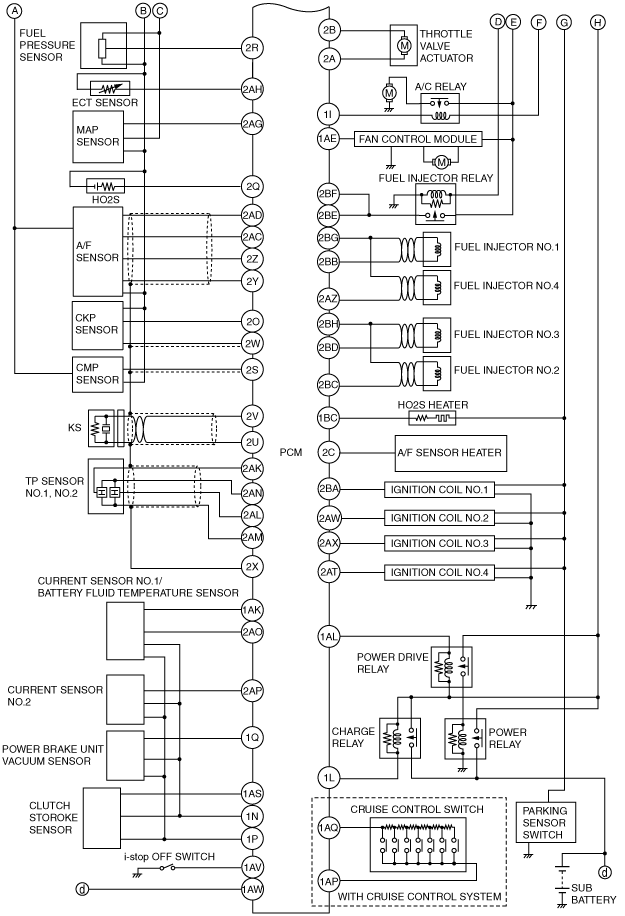

CONTROL SYSTEM WIRING DIAGRAM [MZR 2.0 DISI i-stop]

id0140j1800400

am3zzw00012413

am3zzw00012414

*1 :Vehicles without advanced keyless entry and push button start system

*2 :Vehicles with advanced keyless entry and push button start system
