i-stop OFF SWITCH REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop]

id0140j1888800

1.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

2.  Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.0 DISI i-stop].)

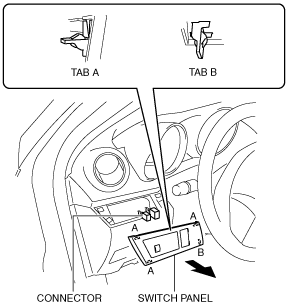

3.  Remove the switch panel in the direction of the arrow shown in the figure.

am3zzw00011895

4.  Disconnect the connectors.

5.  Remove the i-stop OFF switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).

am3zzw00011896

6.  Remove the i-stop OFF switch.

7.  Install in the reverse order of removal.
