FRONT LOWER ARM REMOVAL/INSTALLATION

id021300800600

Caution
•  Performing the following procedures without first removing the ABS wheel-speed sensor may possibly cause an open circuit in the wiring harness if it is pulled by mistake. Before performing the following procedures, disconnect the ABS wheel-speed sensor wiring harness connector (axle side) and fix the wiring harness to an appropriate place where it will not be pulled by mistake while servicing the vehicle.

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

3.  Inspect the wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT.)

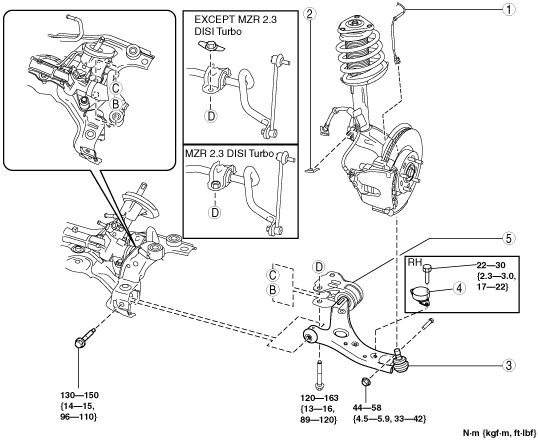

am3zzw00013317

1
Front ABS wheel-speed sensor wiring harness connector
2
Brake hose clip
3
Front lower arm ball joint
(See Front Lower Arm Ball Joint Installation Note.)
4
Dynamic damper (MZR 2.3 DISI Turbo)
5
Front lower arm
(See Front Lower Arm (RH) Removal Note (MZR 2.0, MZR 2.0 DISI i-stop).)
(SeeFront Lower Arm Installation Note.)


Front Lower Arm (RH) Removal Note (MZR 2.0, MZR 2.0 DISI i-stop)

Note
•  When working on the right side of vehicles with MZR 2.0 and MZR 2.0 DISI i-stop, move the A/C compressor protector so that the A/C compressor protector does not interfere with the removal of the front lower arm front side bolt.

1.  Remove the A/C compressor protector.

am3uuw00003224

2.  Remove the front lower arm.


Front Lower Arm Installation Note

1.  Install the front lower arm to the front crossmember and temporarily tighten the installation bolts.

2.  Completely tighten the bolts on the rear side of the front lower arm in the following order.

(1)  Temporarily tighten bolts A and B shown in the figure.
(2)  Tighten bolt A.
(3)  Tighten bolt B.
(4)  Tighten bolt A.
am3uuw00002828

3.  Install the A/C compressor protector. (MZR 2.0 (RH), MZR 2.0 DISI i-stop)

am3uuw00003225


Front Lower Arm Ball Joint Installation Note

Note
•  The bolt insertion direction can be either front or rear of the vehicle, however, keep the insertion direction the same on both the left and right sides of the vehicle.
