FRONT SHOCK ABSORBER AND COIL SPRING DISASSEMBLY/ASSEMBLY

id021300801300

Warning
•  Removing/installing the front shock absorber and coil spring is dangerous. The front shock absorber and coil spring could fly off and cause serious injury or death, and damage the vehicle.

1.  Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION.)

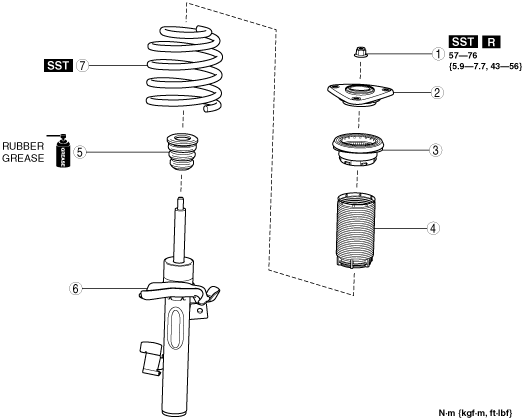

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

am3uuw00002572

1
Piston rod nut
(See Piston Rod Nut Removal Note.)
2
Mounting rubber
3
Bearing
(See Bearing Installation Note.)
4
Dust boot
(See Dust Boot Installation Note.)
5
Bound stopper
6
Front shock absorber
7
Coil spring
(See Coil Spring Installation Note.)


Piston Rod Nut Removal Note

Warning
•  Before removing the piston rod nut, secure the front shock absorber and coil spring in the SST. Otherwise, the coil spring could fly off under tremendous pressure and cause serious injury or death, or damage to vehicle parts.

1.  Install the front shock absorber and coil spring to the SST according to the following procedures.

Note
•  Install the SST using a piece of clean rag to prevent the coil spring from being scratched.
(1)  Set the SST attachments (tabs) to the positions shown in the figure.
am3uuw00002573

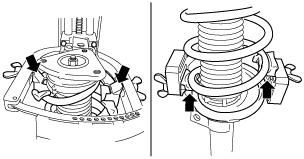

(2)  Install the front shock absorber and coil spring to the SST so that the coil spring is set to the position shown in the figure.
am3uuw00002574

2.  Compress the coil spring using the SST.

3.  Remove the piston rod nut.


Coil Spring Installation Note

1.  Compress the coil spring using the SST.

am3uuw00002751

2.  Install the front shock absorber so that the lower end of the coil spring is seated on the step of the lower spring seat.


Dust Boot Installation Note

1.  Install the dust boot by hooking the bottom edge over the front shock absorber lip.

am3uuw00000879


Bearing Installation Note

1.  Install the bearing by hooking the upper end of the dust boot to the bearing lip.

am3uuw00000880

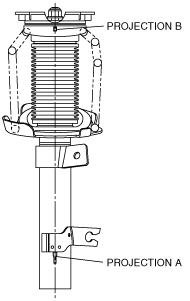

2.  Align the projection A on the lower part of the front shock absorber with the bearing projection B.

am3uuw00000881
