REAR STABILIZER REMOVAL/INSTALLATION

id021400800500

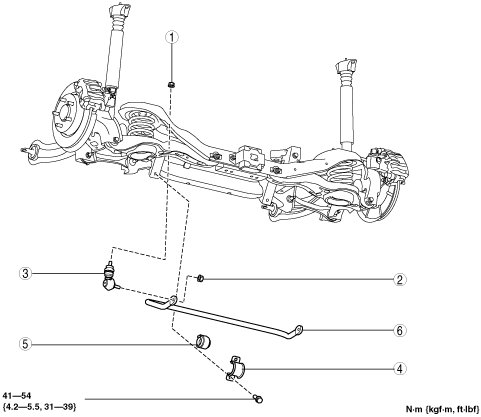

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

am3zzw00013263

1
Rear stabilizer control link upper side nut
(See Rear Stabilizer Control Link Upper Side Nut Installation Note.)
2
Rear stabilizer control link under side nut
(See Rear Stabilizer Control Link Under Side Nut Installation Note.)
3
Rear stabilizer control link
4
Rear stabilizer bracket
(See Rear Stabilizer, Rear Stabilizer Bushing and Rear Stabilizer Bracket Installation Note.)
5
Rear stabilizer bushing
(See Rear Stabilizer, Rear Stabilizer Bushing and Rear Stabilizer Bracket Installation Note.)
6
Rear stabilizer
(See Rear Stabilizer, Rear Stabilizer Bushing and Rear Stabilizer Bracket Installation Note.)


Rear Stabilizer, Rear Stabilizer Bushing and Rear Stabilizer Bracket Installation Note

1.  Install the rear stabilizer bushing so that the projection points to the left side of the vehicle.

am3uuw00003586

2.  Install the rear stabilizer bracket.

3.  Install the rear stabilizer component to the vehicle.


Rear Stabilizer Control Link Under Side Nut Installation Note

1.  Verify the shape of the removed nut and if it is an A type, replace the nut with a new one.

Caution
•  Because the A type nut is a locknut, if the nut is reused it could loosen.
azzzcw00000091

2.  Install and tighten the nut.

azzzcw00000091

Tightening torque
A type: 44—60 N·m {4.5—6.1 kgf·m, 33—44 ft·lbf}
B type: 45—55 N·m {4.6—5.6 kgf·m, 34—40 ft·lbf}
C type: 80—105 N·m {8.2—10 kgf·m, 60—77 ft·lbf}


Rear Stabilizer Control Link Upper Side Nut Installation Note

1.  Verify the shape of the removed nut and if it is an A type, replace the nut with a new one.

Caution
•  Because the A type nut is a locknut, if the nut is reused it could loosen.
azzzcw00000090

2.  Install and tighten the nut.

azzzcw00000090

Tightening torque
A type: 44—60 N·m {4.5—6.1 kgf·m, 33—44 ft·lbf}
B type: 45—55 N·m {4.6—5.6 kgf·m, 34—40 ft·lbf}
