REAR SHOCK ABSORBER REMOVAL/INSTALLATION

id021400801300

1.  Remove in the order indicated in the table.

2.  Install in the reverse order of removal.

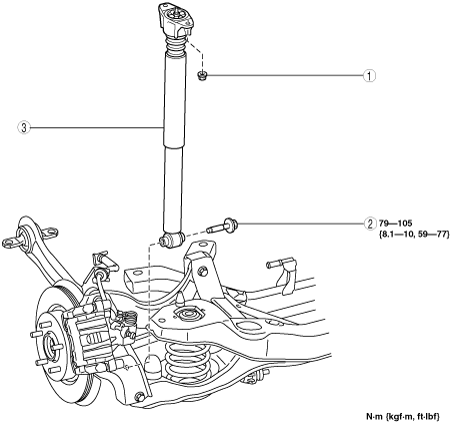

am3zzw00013258

1
Rear shock absorber upper side nut
(See Rear Shock Absorber Upper Side Nut Installation Note.)
2
Rear shock absorber under side bolt
3
Rear shock absorber


Rear Shock Absorber Upper Side Nut Installation Note

1.  Verify the shape of the removed nut and if it is an A type, replace the nut with a new one.

Caution
•  Because the A type nut is a locknut, if the nut is reused it could loosen.
azzzcw00000088

2.  Install and tighten the nut.

azzzcw00000088

Tightening torque
A type: 22—28 N·m {2.3—2.8 kgf·m, 17—20 ft·lbf}
B type: 23—31 N·m {2.4—3.1 kgf·m, 17—22 ft·lbf}
