JOINT SHAFT DISASSEMBLY [MZR 1.5]

id0313008010l4

1.  Disassemble in the order indicated in the table.

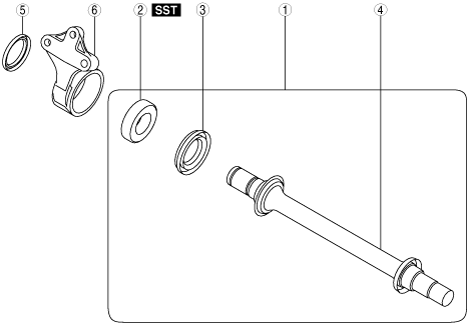

am3zzw00008301

1	Joint shaft component (See Joint Shaft Component Disassembly Note.)
2	Bearing (See Bearing Disassembly Note.)
3	Dust seal (LH)
4	Joint shaft
5	Dust seal (RH)
6	Bracket

Joint Shaft Component Disassembly Note

1.  Secure the bracket to the vise at the position shown in the figure and remove the joint shaft component using the plastic hammer.

am3zzw00008302

Caution

•  Do not drop the joint shaft because it could be damaged.

Bearing Disassembly Note

1.  Set the SST and joint shaft to the press.

am3uuw00006196
