JOINT SHAFT DISASSEMBLY [SKYACTIV-G 2.0]
id0313008010x4

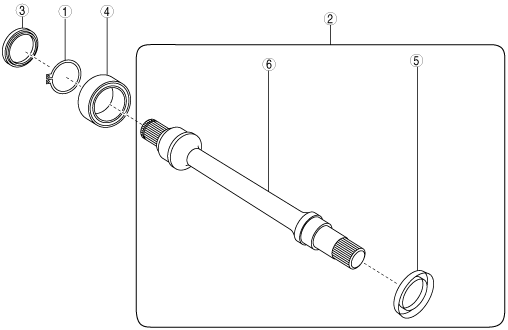

1. Disassemble in the order indicated in the table.
adejjw00007149
|
|
1
|
Snap ring
|
|
2
|
Joint shaft component
|
|
3
|
Dust seal
|
|
4
|
Bearing
|
|
5
|
Dust cover
|
|
6
|
Joint shaft
|
Joint Shaft Component Disassembly Note
1. After removing the snap ring, remove the dust seal and the bearing from the joint shaft component using a press.
