JOINT SHAFT ASSEMBLY [MZR-CD 2.2]

id0313008011j6

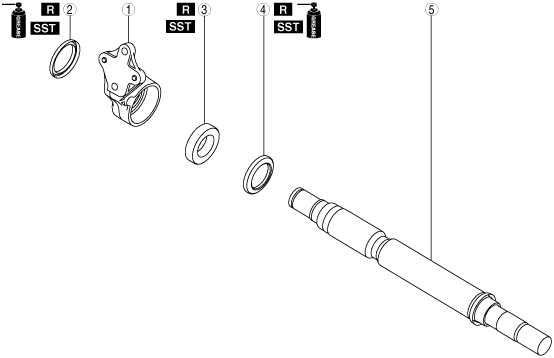

1.  Assemble in the order indicated in the table

am3zzw00008571

1	Bracket
2	Dust seal (RH) (See Dust Seal (RH) Assembly Note.)
3	Bearing (See Bearing Assembly Note.)
4	Dust seal (LH) (See Dust Seal (LH) Assembly Note.)
5	Joint shaft (See Joint Shaft Assembly Note.)

Dust Seal (RH) Assembly Note

1.  Apply grease to a new dust seal (RH) lip.

2.  Assemble a new dust seal (RH) using the SST, steel plate and a press.

am3zzw00008572

Bearing Assembly Note

1.  Install the bearing using the SSTs and a press.

am3zzw00008573

Dust Seal (LH) Assembly Note

1.  Apply grease to a new dust seal (LH) lip.

2.  Install a new dust seal (LH) using the SSTs, steel plate and a press.

am3zzw00008574

Joint Shaft Assembly Note

1.  Assemble the joint shaft using the SST, steel plate and a press.
