JOINT SHAFT ASSEMBLY [MZR 2.0, MZR2.0 DISI i-stop, MZR 2.5 (MTX)]
id0313008011l7

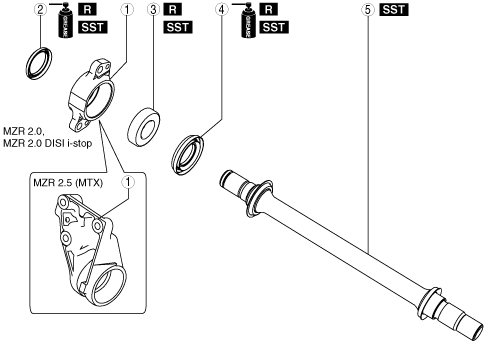

1. Assemble in the order indicated in the table.
am3zzw00011424
|
|
1
|
Bracket
|
|
2
|
Dust seal (RH)
(See Dust Seal (RH) Assembly Note.)
|
|
3
|
Bearing
(See Bearing Assembly Note.)
|
|
4
|
Dust seal (LH)
(See Dust Seal (LH) Assembly Note.)
|
|
5
|
Joint shaft
(See Joint Shaft Assembly Note.)
|
Dust Seal (RH) Assembly Note
1. Apply grease to a new dust seal lip.
2. Install the dust seal (RH) using the SSTs.
am3zzw00011425
|
am3zzw00011426
|
Bearing Assembly Note
1. Install a new bearing using the SSTs.
am3zzw00011427
|
am3zzw00011428
|
Dust Seal (LH) Assembly Note
1. Apply grease to a new dust seal lip.
2. Install a new dust seal (LH) using the steel plate and the SSTs.
am3zzw00011429
|
am3zzw00011430
|
Joint Shaft Assembly Note

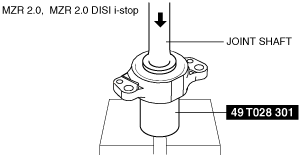

1. Press fit the joint shaft using the SST and a press.
am3zzw00011431
|
am3zzw00011432
|
