JOINT SHAFT ASSEMBLY [SKYACTIV-G 2.0]

id0313008011x4

1.  Assemble in the order indicated in the table.

adejjw00007150

1
Dust cover
(See Dust Cover Assembly Note.)
2
Bearing
(See Bearing Assembly Note.)
3
Snap ring
4
Dust seal
(See Dust Seal Assembly Note.)
5
Joint shaft


Dust Cover Assembly Note

1.  Mark the position at the distance indicated in the figure from the end of the joint shaft.

am3uuw00008057

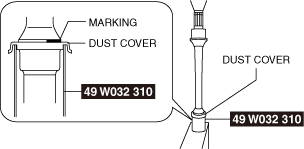

2.  Using the SST, install a new dust cover aligned to the marked position.

am3zzw00021119

Caution
•  Use the SST with the notched surface facing down.

3.  After installing, verify that the dust cover is installed within the specification.

am3uuw00008409

Standard length
87.0—88.0 mm {3.43—3.46 in}


Bearing Assembly Note

1.  Install a new bearing using the SST.

am3uuw00008058

Caution
•  Use the SST with the flat surface facing up.


Dust Seal Assembly Note

1.  Apply grease to a new dust seal lip.

2.  Mark the position at the distance indicated in the figure from the end of the joint shaft.

am3uuw00008059

3.  Set a new dust seal to the SST, and press the dust seal into the joint shaft.

am3uuw00008410

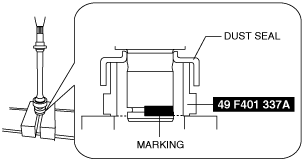

4.  Press the dust seal with the mark on the joint shaft aligned.

am3uuw00008411

5.  After installing, verify that the dust seal is installed within the specification.

am3uuw00008060

Standard length
38.75—39.55 mm {1.526—1.557 in}
